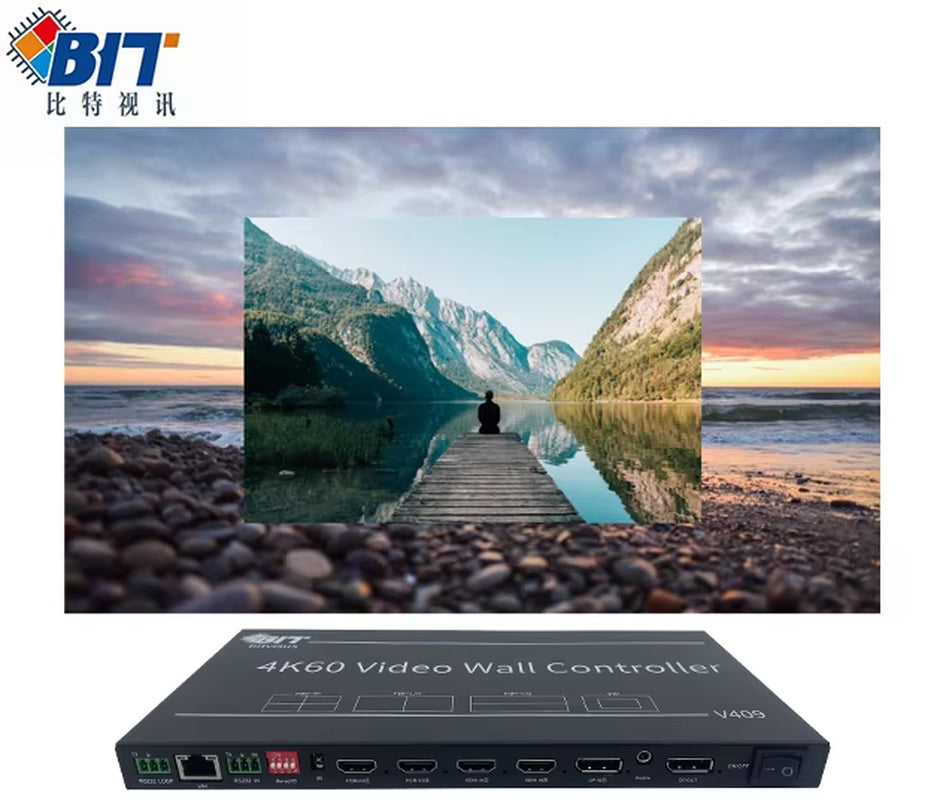

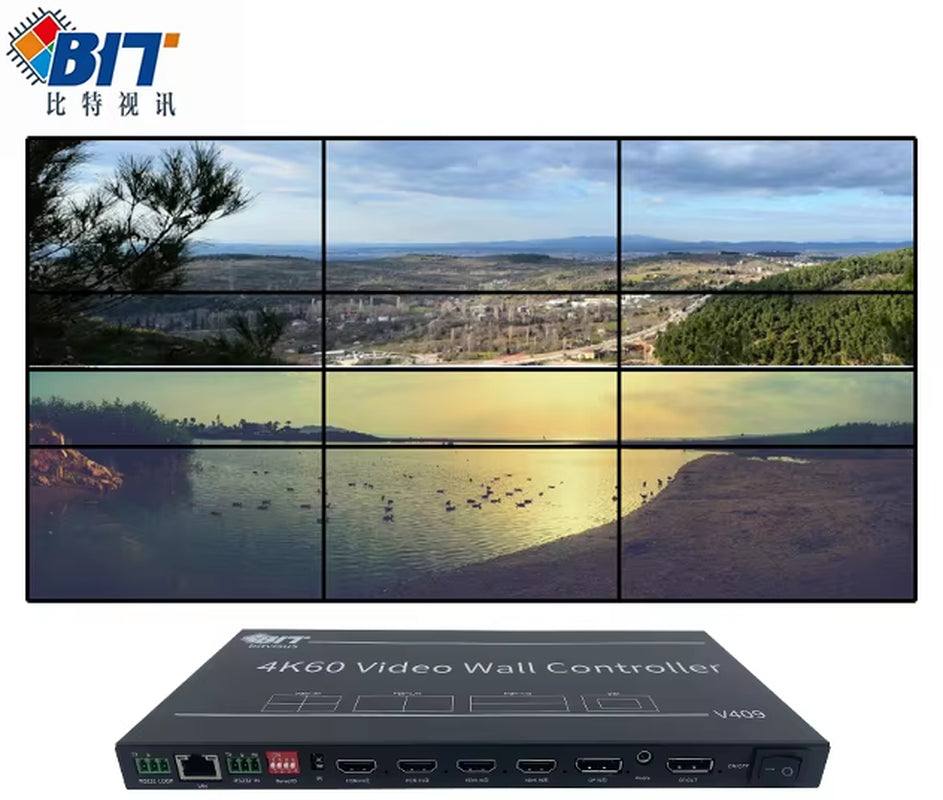

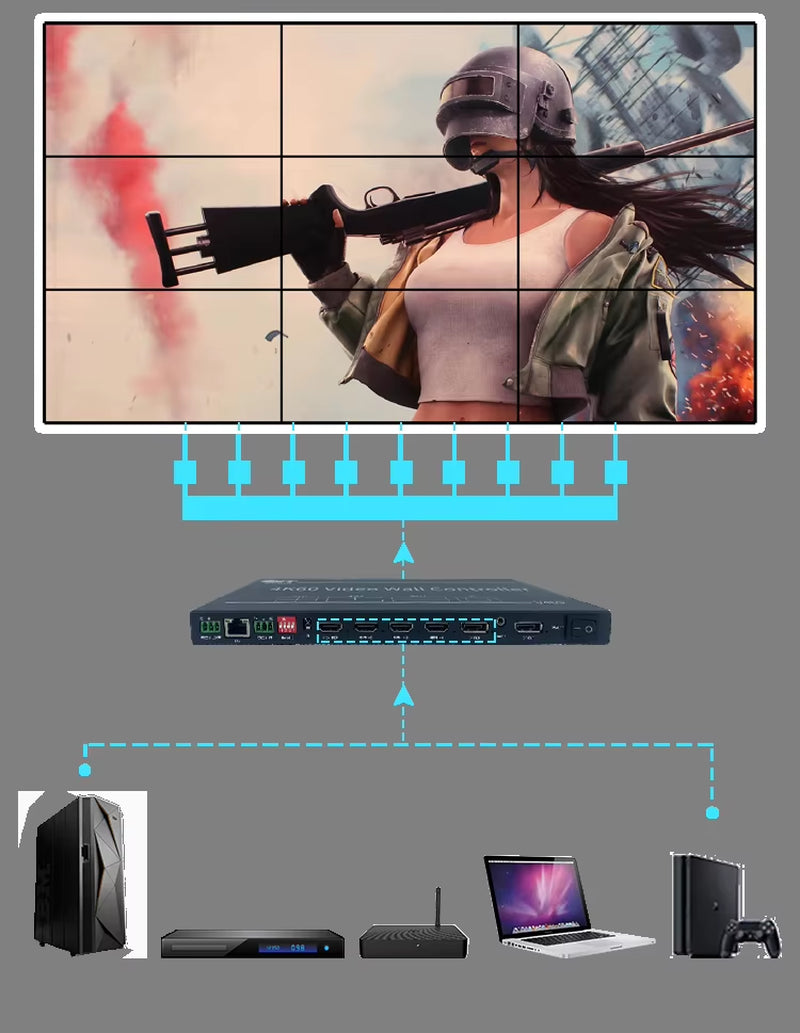

BIT-VWC-409R is an ultra HD Rotary Splicer by Shenzhen Bitvisus Technology Limited. Support 4 channels HDMI input (1 channel 4K@60Hz,3 channels 4K@30Hz), 1 channel DP input (4K@60Hz), 9 channels output HDMI (1080p@60Hz), 1 channel DP loop out. ● The input supports full screen rotation of 90 °(only supported in single-picture mode), and the output supports 180 ° rotation of the first line (only supported when the stitching mode is two lines). ● Support single display mode (1x1). ● Support infrared remote control, serial RS232 control. ● Low power consumption, energy saving and environmental protection. Conductive heat dissipation is used internally. ● without any external heat dissipation measures, and the reliability is extremely high. ● Support Computers, Android boxs, game consoles and other devices as input source. ● Supports DHCP function, which automatically obtains IP address for assignment when multiple devices are connected, without the need to set IP address manually.
(weekends and holidays excluded).
Professional 3X3 Video Wall Controller HD 9 Screen Video Switcher for Audio Video & Lighting
$557.99
Product Description
4K HDMI video wall controller switcher features
BIT-VWC-409R is an ultra HD Rotary Splicer by Shenzhen Bitvisus Technology Limited. Support 4 channels HDMI input (1 channel 4K@60Hz,3 channels 4K@30Hz), 1 channel DP input (4K@60Hz), 9 channels output HDMI (1080p@60Hz), 1 channel DP loop out. ● The input supports full screen rotation of 90 °(only supported in single-picture mode), and the output supports 180 ° rotation of the first line (only supported when the stitching mode is two lines). ● Support single display mode (1x1). ● Support infrared remote control, serial RS232 control. ● Low power consumption, energy saving and environmental protection. Conductive heat dissipation is used internally. ● without any external heat dissipation measures, and the reliability is extremely high. ● Support Computers, Android boxs, game consoles and other devices as input source. ● Supports DHCP function, which automatically obtains IP address for assignment when multiple devices are connected, without the need to set IP address manually.
Specification
Product Name |
BIT-VWC-409R |
Input interface maximum video pixel frequency |
600MHz |
Output interface maximum video pixel frequency |
165MHz |
Maximum input resolution |
3840*2160@60Hz |
Maximum output resolution |
1920*1080@60HZ |

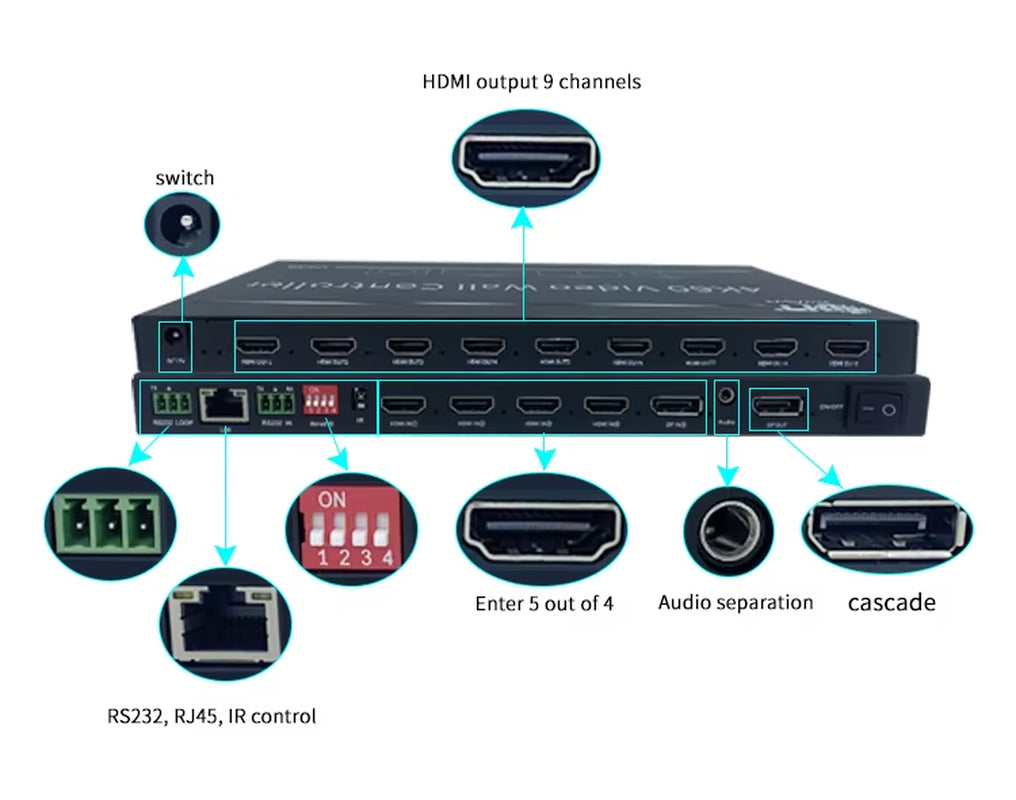

HDMI input interface |
CE,FCC,ROHS |
DP input interface |
1xDisplay prot1.2 |
HDMI input interface |
1xHDMI2.0, 3xHDMI1.4 |
HDMI output interface |
9xHDMI1.3 |
Factory default resolution |
HDMI:3840*2160@30Hz DP:3840*2160@60Hz
|
Metode kontrol |
Remote control, PC host computer (RS232 serial port) |
Voltage |
12V@2A AC-DC power supply |
Power consumption |
12W |
Size |
Length, Width, Height (270mm*143.5mm*20.5mm) |
Product Details
Real Reviews
FAQ
BIT-VWC-409R FAQ
Q1. Does it support RS232 control?A: support.
Q2. What power supply specifications that can be offered?A: American, British, European, South African and Chinese specifications, etc.
Q3. Both input and output support 4K?A: The 4th HDMI input port and 5th DP input port support 4K@60, output single port support 1080P@60H, the output supports the whole screen 4K60Hz.Q4. How far does the wiring distance support?A: The input supports HDMI up to 3 meters, and the output supports HDMI up to 10 meters.Q5. How many input sources can be supported display at the same time?A: It can support 4 input sources display on the video wall at the same time.
